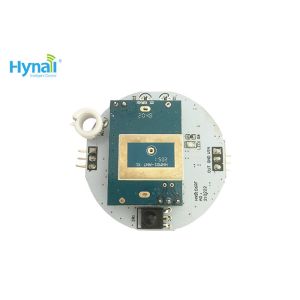

12V DC microwave sensor RF Wireless grouping remote control setting HNS106RF
RF wireless cluster control, ideal for retrofit project /parking garage / staircase / corridor applications,easy installation, free of wiring.
Features:
Parameters: Can be customized on requirement
| Input | DC Input Voltage | 12V DC |
| Output | Signal | 0-10V / PWM |
| Sensor Parameters | Operating Frequency | 5.8 GHz, for lighting or lighting system |
| Hold time | T3s /30S/90S/5min/10min/30min | |
| Stand-by dimming level | 0%/ 10%, 30%, 50% | |
| Stand-by period | 10S/5min/30min/+∞ | |
| Detection range | 50%/100% | |
| Daylight Sensor | 2lux/10Lux/25Lux/ 50Lux/Disable | |
| Mounting Height | 6m Max. | |
| Detecting Angle | 150°(wall mounting) and 360°(ceiling mounting) | |
| Operating Environment | Operating Temperature | -20℃-+70℃ |
